Duct Design an Duct Fabrication

Duct Design and Duct Fabrication are essential components of the HVAC (Heating, Ventilation, and Air Conditioning) systems. They ensure that air is efficiently distributed throughout a building for optimal temperature control, ventilation, and air quality.

Duct Design:

Duct design involves planning and determining the appropriate system layout, size, and components to ensure that air is distributed effectively and efficiently within a building. It is a critical part of the HVAC design process.

Key Components of Duct Design:

1. Airflow Calculations:
   • CFM (Cubic Feet per Minute): The airflow requirement in cubic feet per minute determines the size of the ducts and the equipment needed. Designers calculate the required airflow based on the size of the building, the number of rooms, the building usage, and the type of HVAC system.
   • Pressure Drop: Duct systems should be designed to minimize pressure loss, as excessive pressure drop can result in inefficient air delivery and higher energy consumption.
2. Duct Sizing:
   • Manual D (Duct Sizing): This is a standard method used to size ducts in a residential or commercial HVAC system. It ensures that each duct is properly sized for efficient airflow without creating excessive noise or air resistance.
   • Velocity-Based Design: This design method uses air velocity (speed at which air moves through the duct) to determine the duct size. Common velocities for supply air ducts are between 900 and 1,200 feet per minute (fpm), depending on the system type and building size.
   • Static Pressure: It's the pressure exerted by the air inside the duct. Ensuring that the system has a balanced static pressure is key to good airflow and efficiency.

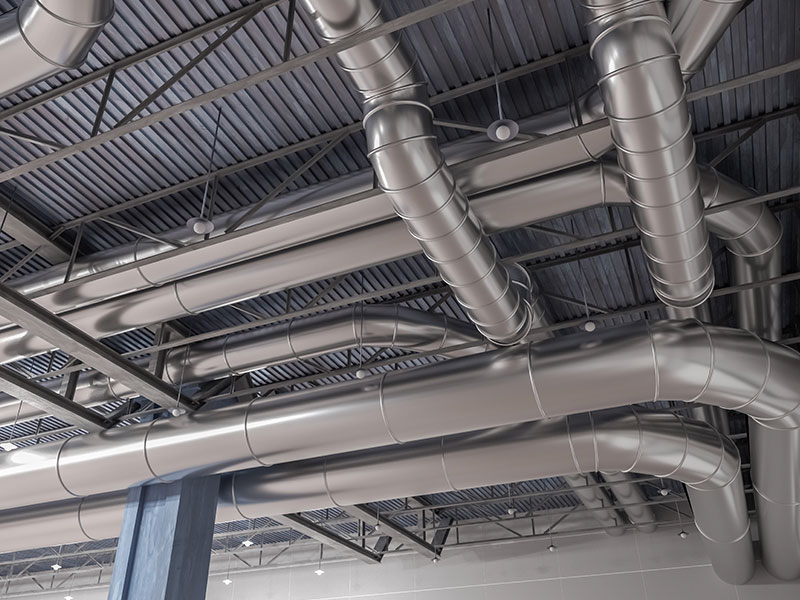

3. Duct Layout:
   • Main Duct (Trunk): The main duct, which carries air from the central HVAC unit to the distribution branches (smaller ducts).
   • Branch Ducts: These are smaller ducts that connect to individual rooms or zones within the building.
   • Duct Routing: A well-planned duct layout ensures that air travels with minimal resistance and without significant pressure loss.
   • Duct Fittings: Elbows, transitions, and T-joints are used to change directions or combine air flows in different ducts. Designers aim to minimize sharp turns to avoid pressure losses and turbulence.
4. Types of Ducts:
   • Flexible Ducts: Made of a flexible material that can be easily routed through tight spaces. These are often used in residential settings but are less durable than rigid ducts.
   • Rigid Metal Ducts: Made from galvanized steel or aluminum, these ducts are durable, long-lasting, and ideal for commercial and industrial installations.
   • Sheet Metal Ducts: Typically used for larger commercial systems, sheet metal ducts are fabricated on-site or pre-manufactured.
   • Fiberglass Ducts: Insulated ducts that help maintain air temperature and reduce noise.
5. Noise and Vibration Control:
   • Duct design should consider sound dampening. Excessive noise from airflow or mechanical vibrations can be disturbing, so noise reduction strategies such as acoustic lining or the proper selection of duct materials are important.
6. Duct Insulation:
   • Insulating ducts helps to reduce energy loss, improve system efficiency, and prevent condensation buildup, especially in HVAC systems with large temperature differentials between the air and the outside environment.
7. Building Codes and Standards:
   • Duct design must comply with local building codes, such as the SMACNA (Sheet Metal and Air Conditioning Contractors' National Association) standards and the ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) guidelines, which help ensure safety, performance, and energy efficiency.

Duct Fabrication:

Duct fabrication is the process of manufacturing and assembling the ducts that will be installed in the HVAC system. It involves cutting, shaping, and assembling the raw materials into the final ductwork components.

Key Steps in Duct Fabrication:

1. Material Selection:
   • Galvanized Steel: Most commonly used for ductwork due to its strength, corrosion resistance, and ability to withstand high-pressure systems.
   • Aluminum: Lightweight and corrosion-resistant, making it ideal for residential and commercial applications where weight is a concern.
   • Stainless Steel: Used in environments requiring high durability, such as food processing or pharmaceutical facilities.
   • Flexible Materials: Flexible ducts are made of a spiral wire helix covered with a layer of insulating or protective material.
2. Duct Cutting and Shaping:
   • Sheet Metal Cutting: Raw sheets of material are cut into panels that are then shaped into the required sizes for ducts. This is typically done using shears, lasers, or plasma cutters.
   • Bending and Forming: Ducts are often bent into the necessary shapes (e.g., elbows, transitions, or reducers) using machines like press brakes.
   • Duct Joints: Duct sections are joined using sheet metal screws, bolts, or welding. Sealing agents are used to prevent air leaks at joints.
3. Duct Sizing and Fabrication:
   • Custom sizes are determined based on the design specifications. For example, a larger duct is fabricated to handle higher airflow, while smaller ducts are created for individual zones or rooms.
   • The fabrication process ensures that each piece of ductwork is dimensioned correctly according to the calculated airflow and pressure requirements.
4. Duct Insulation:
   • Insulating Ductwork: Insulation is applied to ductwork to prevent heat loss or gain, reduce noise, and prevent condensation from forming inside the duct.
   • Flexible Insulation: This is commonly used in flexible ducts and involves wrapping a layer of fiberglass or foam insulation around the duct.
   • Rigid Insulation: Rigid boards or materials are used for larger metal ducts, often in commercial or industrial settings.
5. Duct Testing:
   • Before the ducts are installed, they are often pressure tested for leaks. Leaky ducts can cause significant energy loss, so ensuring that they are sealed properly is critical.
   • Ducts are also tested for airflow to verify that the design specifications are met.
6. Pre-Assembly and Shipping:
   • Pre-assembled sections of ductwork are often fabricated in a workshop or factory setting and then shipped to the construction site. This ensures the ducts are manufactured with precision and ready for installation upon arrival.

Duct Design and Fabrication Careers:

1. Duct Designers:
   • These professionals are responsible for creating the detailed plans and drawings for duct systems, ensuring proper airflow, efficiency, and compliance with building codes.
   • They typically use software like AutoCAD, Revit, and specialized duct design software like Ductulator to create accurate system layouts.
2. Duct Fabricators:
   • Fabricators work with raw materials (such as sheet metal) to cut, shape, and assemble the ducts according to design specifications. They often use specialized tools such as metal shears, brake presses, and welding equipment.
3. HVAC Contractors:
   • Contractors may oversee the installation of duct systems, managing both the design and fabrication aspects as part of the overall HVAC installation process.
